HSM Mobile Sand Rock Placer Gold Trommel Washing Machine Plant

  • 1 - 2 Sets
    $10,000.00
  • 3 - 4 Sets
    $8,000.00
  • >=5 Sets
    $6,000.00
Model Number:
HSM1235
Power(W):
3-11kw
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Construction works , Energy & Mining, Gold Mining
Condition:
New
Type:
trommel washing plant
Production Capacity:
7-22T
Place of Origin:
Henan, China
Brand Name:
trommel washing plant
Voltage:
According to clients local standard
Dimension(L*W*H):
as design
Weight:
as design
Certification:
CE/BV/SGS/ISO
Warranty:
More than 5 Years
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Name:
trommel washing plant
Sieve pore size:
2-20mm
Max. feeding size:
Mesh size *2.5
Color:
As your require
Application:
Alluvial Gold Washing
Material:
Steel
Recovery rate:
90-99%
Quality:
High Reputation
Installation:
Engineer Guide
Supply Ability
Supply Ability:
100 Set/Sets per Month trommel washing plant
Packaging & Delivery
Packaging Details
trommel washing plant standard packing,seaworthy packing,or as required
Port
China Main Port
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 5 To be negotiated

HSM Mobile Sand Rock Placer Gold Trommel Washing Machine Plant



Product Description
trommel washing plant is mostly used in sand area,expecially on the bank of river or dry riverbed. Gold mining equipment mostly used in rivers or lakes.HSM gold mining equipment include material feeding system,material sieving system,gold separating system,tailing processing system,water supply system and power supplying system.

The size and capacity of the trommel washing plant can be customized. As we are the manufacturer, we can help you design the suitable equipment in your plant. This equipment includes the washing function and sieving function. The length of washing part and sieving part can be made as your request.

trommel washing plant , which is also named Gold washing trommel, is the most advanced ore washing equipment at present in China. It is able to de-slime of the sand and stone, the trommel inside is equipped with single or double layer round screen which can get 2 to 3 different sizes of sand stone products.

trommel washing plant is applied pre-concentration of the materials contain mud, to promote the beneficiation index in the later steps and it is widely used to the washing of gold,manganese, iron, limestone, tungstenore, silica and so on.
The brief indrouction of Mobile Sand Rock Placer Gold Trommel Washing Machine Plant:

Working Procress:

Load Raw Material to Hopper—> Gold Trommel —>Jigger/Shaking Table/ Gold concentrator —>Sluice



Gold trommel Equipment Involved:

1) excavator / wheel loader                     For feeding

2) gold screen machine                           For washing and screening gold

3) belt conveyor                                       Transport waste rock

4) shaking table/ jigger machine/ gold concentrator /gold sluice box /Gold pan

5) water pump trommel washing plant

6) Amalgamation

7) Gold Melting

Mobile Sand Rock Placer Gold Trommel Washing Machine Plant Features



1.Designed to break up alluvial gravels, clays and sand
2.High capacity and high power scrubbing trommel washing plant
3.The long drum of the scrubber retains material for longer, more vigorous washing for complete separation
4.One high output electrical motor driving a gear system providing efficient torque
5.Adjustable rotary speed
6.The water with high pressure flushed the inwall of drum   trommel washing plant
7.Can accept material up to 230mm Portable Mining Gold Trommel Washing Plant
8.Mechanical sealing of inlet chute – minimal spillage when over feeding
9.Drive loads absorbed within the drive frame and pivoting drive frame design -Foundations only have to support vertical load and are not critical for alignmentie minimal cost
10.Shell design less mass than conventional roller supported units – installation craneage requirement reduced.



The working principle of Mobile Sand Rock Placer Gold Trommel Washing Machine Plant

Material feed into the hopper by excavator,high pressure water released and wash the mineral,then,mineral by forward into the drum.It is lifted up by the rotation and aerated as it fall back down.This finer material passes through the screen openings while the large material tumbles towards its eventually exit at the real of the drum.After that,the final mineral and water go through the sluice bow which is consist with gold grass mat.The no use mineral are washed out and the gold are catched by the gold grass mat. China supplier mobile screen river gold washing machine trommel gold washing plant are designed according to your specific mining conditions and requirements. Mobile Sand Rock Placer Gold Trommel Washing Machine Plant

1) Input of raw materials through heavy equipment

Raw materials inputted through the entrance of the hopper will be pushed into the trommel screen by the strong water pressure of the shower equipped in the hopper.



2) Selection and cleaning of raw materials

Raw materials will be cleaned and selected by the rotation of trommel screen and, by watering of the shower inside, run into the gold dust separate panel. trommel washing plant



3) Collecting of gold dust separated

Soil and sands with lighter specific gravity will flow away but gold dusts with greater specific gravity will be staying in the gathering mat to be collected.





The technical parameter of Mobile Sand Rock Placer Gold Trommel Washing Machine Plant



we have both mobile and fixed type trommel for your choose, machine colour paint for your favourite.

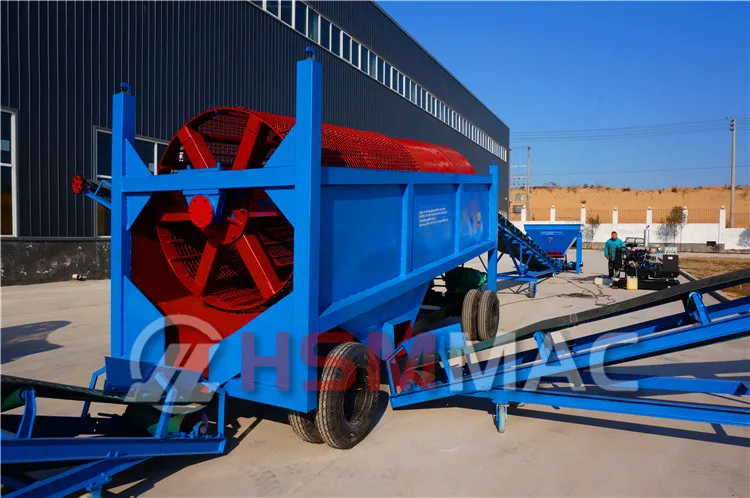

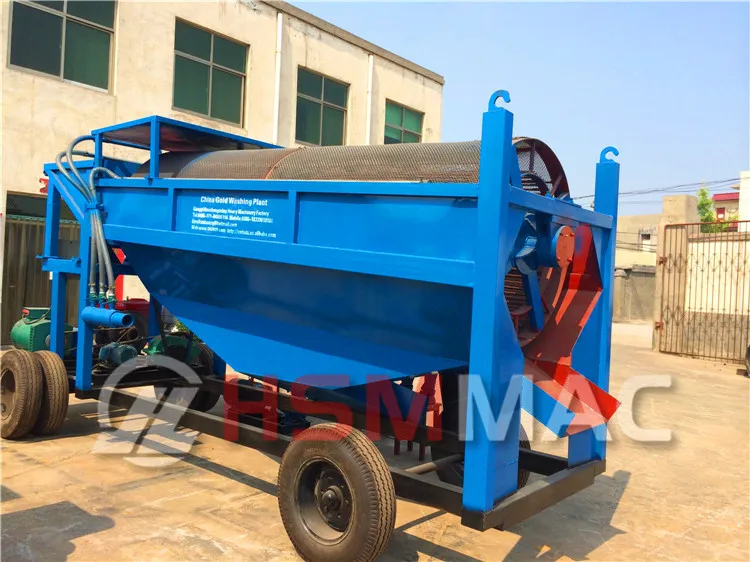

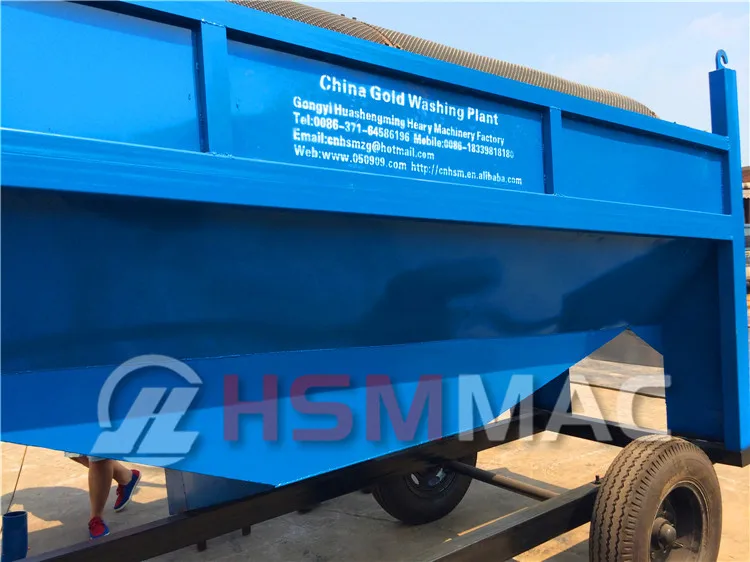

Images of Mobile Sand Rock Placer Gold Trommel Washing Machine Plant



Our Certifications





Company Information

Our factory has 800 sets of equipment, more than 1,300 employees, including 215 technicians, with casting, forging, heat treatment, machining, welding, assembly, machine repair workshop, and a complete quality assurance system TQC. Testing and heat treatment through the ISO9001 international quality system certification, to provide customers with the design and manufacture of complete sets of equipment Mobile Sand Rock Placer Gold Trommel Washing Machine Plant

Gongyi Huashengming Machinery Co., Ltd is a high-technology enterprise in Gongyi City. For the past twenty years, Huashengming has been developing and manufacturing machines for the stone crushing plant, drying plant, screening plant,oil press plant,wood pellet production line ,construction machine and so on.





Our Services



1.Design most suitbale flow chart and layout freely according to your request.

2.Provide operating instruction and relative drawing.

3.We can send 1-2 technicians to the site for guiding the installation and commissioning.

4.We offer training service for free.

5.We offer the components with favorable price.

6.lifetime Warranty.



Packaging & Shipping

Mobile Sand Rock Placer Gold Trommel Washing Machine Plant Packing:

1.Sand blasting, coat with high quality paint.

2.rustproof and moisture proof before delivery.

3.Load container, Spear Parts in wooden case or iron sheet trunk.



Shipping:

1.By sea or by train. we have 20 years cooperate transport company. bestfreight, fast delivery.

2.Send B/L in 3-5 days after ship leaving.

3.will remind you before ship arrival. Mobile Sand Rock Placer Gold Trommel Washing Machine Plant

Warranty Time: 2 years warranty for all of our products.

Payment Terms: We usually accept T/T, L/C, Western Union etc.

20-30% in advance as down payment, the balance pay before delivery. We take pictures and testing videos of finished products before you pay the balance.





FAQ

In order to give you a responsible quotation, you can inform us the

following information: trommel washing plant



1.What's the capacity you need?

2.what's your alluvial Sand gold sizes?

3.what's the max input sizs of the raw materil? does it has much sticky soil?



We will suggest you the most suitable Portable Mining Gold Trommel Washing Plant according to your information.If you have any question, please feel free to contact us, we are very happy to be on service of you, thank you!



Mobile Sand Rock Placer Gold Trommel Washing Machine Plant send email to get more info and video.
